WH250系列自恢復保險絲（WHPTC）在通口類適用產品WH250-120,WH250-145。

“萬和”自恢復保險絲 WHPTC

Model 型號	Ih	It	Vmaxi	Imax	Rmin	Rmax	Product Dimensions (mm) 最大產品尺寸
Model 型號	A	A	V	A	Ω	Ω	Style	A	B	C	D	Lead
WH250-120	0.12	0.24	250	3	6.5	10.5	F3	7.0	9.5	5.1	4.6	0.6
WH250-145	0.145	0.29	250	3	3.5	6.5	F3	7.0	9.5	5.1	4.6	0.6

WH250 系列25℃時典型動作時間曲線 WH250 Typical Time to Trip at 25℃

A:WH250-080
B:WH250-090
C:WH250-110
D:WH250-120
E:WH250-145
F:WH250-180
G:WH250-200
H:WH250-400

備注：1.D,E曲線是wh250系列通訊口類適用產品在25°C時典型動作曲線
2.以上信息僅供參考，產品選型要根據客戶的自身需求進行實際選型

WH250系列自恢復保險絲通訊口類適用產品

產品簡介

WH250系列自恢復保險絲（WHPTC）在通口類適用產品WH250-120,WH250-145。

產品編號：WHPTC	所屬類別：通訊接口自恢復保險絲
瀏覽次數：次	訂購熱線：0755-29503750

標簽

“萬和”自恢復保險絲 WHPTC

Model 型號	Ih	It	Vmaxi	Imax	Rmin	Rmax	Product Dimensions (mm) 最大產品尺寸
Model 型號	A	A	V	A	Ω	Ω	Style	A	B	C	D	Lead
WH250-120	0.12	0.24	250	3	6.5	10.5	F3	7.0	9.5	5.1	4.6	0.6
WH250-145	0.145	0.29	250	3	3.5	6.5	F3	7.0	9.5	5.1	4.6	0.6

WH250 系列25℃時典型動作時間曲線 WH250 Typical Time to Trip at 25℃

A:WH250-080
B:WH250-090
C:WH250-110
D:WH250-120
E:WH250-145
F:WH250-180
G:WH250-200
H:WH250-400

符號Sign	說明	Definition
Ih	WHPTC在25℃環境溫度下的最大工作電流	Hold current-maximum current at which the device will not trip at 25℃
It	WHPTC在25℃環境溫度下啟動保護的最小電流	Trip current-minimum current at which the device will always trip at 25℃
Vmax	WHPTC的最大工作電壓	Maximum voltage at which the device will not trip
Vmaxi	WHPTC在阻斷狀態下所承受的最大電壓	Maximum voltage device can withstand without damage at it rated current
Imax	WHPTC能承受的最大電流	Maximum fault current device can withstand without damage at rated voltage
Rmin	WHPTC工作前的初始最小阻值	Minimum device resistance at 25℃ prior to tripping
Rmax	WHPTC工作前的初始最大阻值	Maximum device resistance at 25℃ prior to tripping

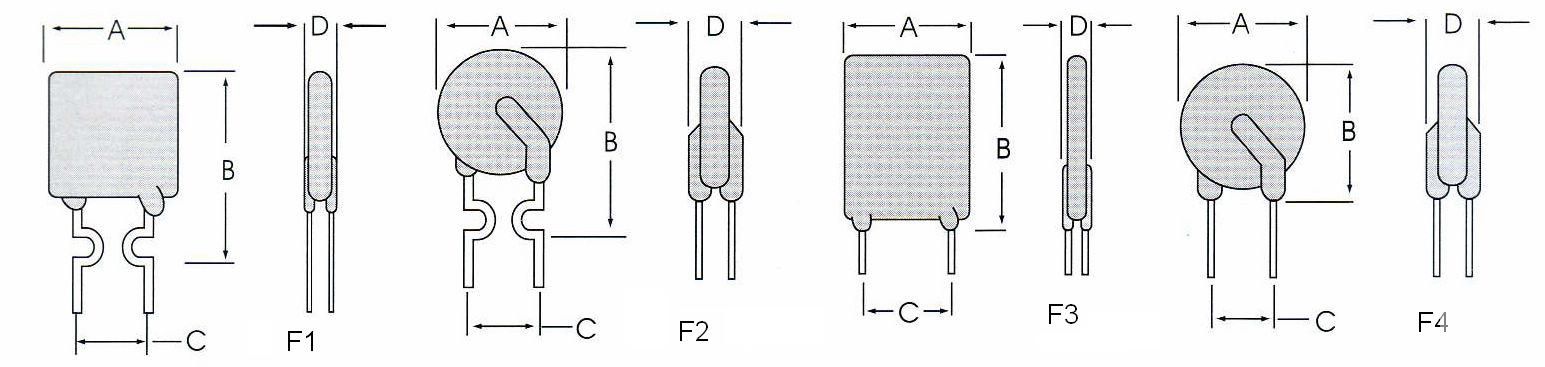

Figure	圖示	The Figure of WHPTC
Lead	導線尺寸	Lead diameter
